Information on the 140

The Cessna 120 and the Cessna 140 are single engine, two-seat, light general aviation aircraft that were first produced in 1946, just following the end of World War II. Production ended in 1950, and was later succeeded by the Cessna 150, another two-seat trainer. Between the 120 and the 140, Cessna sold 7,000 airplanes in the five years that the aircraft were produced.

The Cessna 140 was originally equipped with an 85 or 90 horsepower (63 or 67 kW) Continental piston engine. This model has a metal fuselage and fabric wings with metal control surfaces. The larger Cessna 170 was essentially a four seat 140 with a more powerful engine.

The final variant of the Cessna 140 was the 140A which had a standard Continental C-90 engine producing 90 hp (67 kW), aluminum covered wings and a single strut replacing the dual "V" struts and jury struts fitted on earlier models.

Source: This article is licensed under the GNU Free Documentation License. It uses material from the Wikipedia article "Cessna 140".



140 Specifications

Crew: one pilot
Capacity: one passenger
Length: 21 ft 6 in (6.6 m)
Wingspan: 32 ft 10 in (10.0 m)
Wing area: 167 ft? (16 m?)
Empty: 770 to 900 lb (349 to 408 kg)
Maximum takeoff: 1,450 lb (658 kg)
Powerplant: 1x Continental C-85-12
Cruise speed: 94 knots (174 km/h) at 75% power
Maximum Range: 395 nautical miles (732 km)
Service ceiling: 15,500 ft (4,700 m)
Rate of climb: 750 ft/min (230 m/min)
Takeoff ground roll: 773 ft (236 m)
Landing ground roll: 233 ft (71 m)

Common modifications to the Cessna 120 and 140 include "metalized" wings, where the fabric is replaced with sheet aluminum, and the installation of landing gear extenders to reduce the tendency of the aircraft to nose-over on application of heavy braking.



Additional 140 Photos

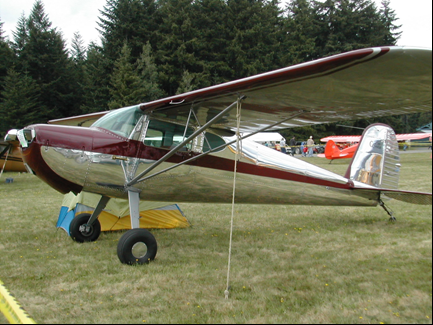

Cessna 140A - Cessna 140A with a single wing strut.Cessna 140 - Cockpit of a Cessna 140Cessna 140 - A 1946 Cessna 140
